Product Specification
|
|
Overview
|

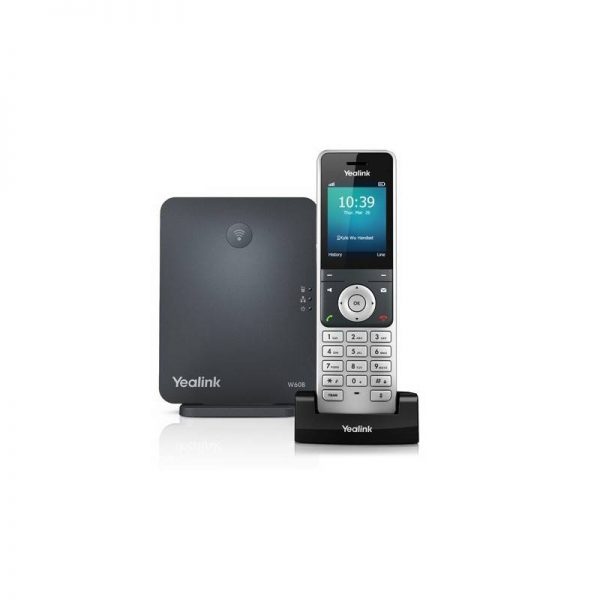

Yealink W60P ชุด Dect IP Phone W56H พร้อม IP Base Station W60B หน้าจอสี 2.4″ HD Voice, รองรับ 8 Account, 1 Port Lan รองรับ POE 802.3af
|
|
Phone Features
|
Up to 8 simultaneous calls
Up to 8 handsets
Up to 8 VoIP accounts
Up to 2 simultaneous calls per handset
Up to 5 repeaters per base station (RT20/RT20U)
Up to 6 repeaters per base station (RT30)
Handset selection for receiving call
Handset and number selection for placing call
Paging, intercom, auto answer, dial plan
Call hold, call transfer, 3-way conference
Switching between calls
Call waiting, mute, silence, DND
Caller ID with name and number
Anonymous call, Anonymous call rejection
Call forward (always/busy/no answer)
Speed dial, voicemail, redial
Message Waiting Indication (MWI)
Music on hold (server-based)
Local phonebook for up to 800 entries (store in the base)
Remote phonebook/LDAP
Phonebook search/import/export
Call history (all/missed/placed/received)
Direct IP call without SIP proxy
Reset to factory, reboot
Keypad lock, emergency call
Broadsoft directory, BroadSoft call log
Broadworks feature key synchronization
Shared Call Appearance (SCA)
|
|
Personalization
|
9 ringer melodies
Screen saver
Multilingual user interface
|
|
Management
|
Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
Auto-provision with PnP
Handset upgrade: OTA (Over-The-Air)/USB port
Configuration: browser/phone/auto-provision
Trace package and system log export
|
|
Audio Features
|
Full-duplex speakerphone
Hearing Aid Compatibility (HAC) compliant
Receiver volume control: 5 steps
Ringer volume control: 5 steps+off
Multiple advisory tones
Acoustic warning for low battery status
DTMF
Wideband codec: Opus, AMR-WB (optional), G.722
Narrowband codec: AMR-NB (optional), PCMU, PCMA, G.726, G.729, iLBC VAD, CNG, AGC, PLC, AJB AEC (supported by W52H and W56H)
Support VQ-RTCPXR (RFC6035), RTCP-XR
|
|
Network Features
|
SIP v1 (RFC2543), v2 (RFC3261)
SNTP/NTP
VLAN (802.1Q and 802.1P)
802.1x, LLDP
STUN Client (NAT Traversal)
UDP/TCP/TLS
IP assignment: static/DHCP
Support outbound proxy server backup
|
|
Security
|
Open VPN
Transport Layer Security (TLS)
HTTPS (server/client), SRTP (RFC3711)
Digest authentication
Secure configuration file via AES encryption
Support SHA256/SHA512/SHA384
Three-level configuration mode: Admin/Var/User
|
|
DECT
|
Frequency bands:
1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
DECT Standards: CAT-iq2.0
|
|
Interface
|
1 x RJ45 10/100M Ethernet port
Power over Ethernet (IEEE 802.3af), Class 1
Headset jack (3.5 mm)
|
|
Physical Features
|
Indoor Range: 20m~50m (The ideal distance is 50m)
Outdoor Range: 300m (in ideal conditions)
Standby Time: 400 hours (in ideal conditions)
Talk Time: 30 hours
2.4’’ 240×320 pixels color display
Desktop or wall mountable
LCD backlit, key backlit
Energy-saving ECO mode/ECO Mode + 12 key numerical keypad, 5 navigation keys, 2 softkeys, 6 function keys, 6 shortcut keys
Three LED indicators on W60B:
– 1 x Registration LED
– 1 x Network Status LED
– 1 x Power Indicator LED
External Yealink AC adapter:
AC 100-240V Input and DC 5V/600mA Output
Color: Handset: Alabaster Silver; Base: Classic Grey
Phone size: 175mm x 53mm x 20.3mm
Base station size: 130mm x 100mm x 25.1mm
Operating humidity: 10~95%
Operating temperature: 0~+40?C (+32~104?F)
|
|
Package Features
|
Package content:
– W56H Handset
– W60B Base Station
– Base Stand
– USB Charger Cradle
– Two Power Adapters
– Ethernet Cable
– Belt Clip
– Rechargeable Battery
– Quick Start Guide
– Handset Protective Case (optional)
Qty/CNT: 10 PCS
Giftbox size: 205mm*196mm*95mm
Carton meas: 495mm*406mm*223mm
N.W: 7.5 kg
G.W: 8.3 kg
|
