Product Specification
|
|
Overview
|

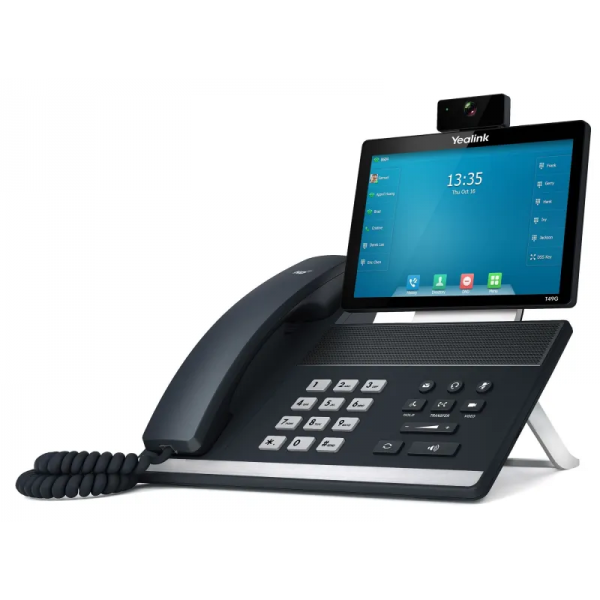

Yealink SIP-T58A IP-Video Phone, พร้อม Yealink CAM50, IP-Phone หน้าจอสีขนาด 7 นิ้ว 720p@30 HD video call, Touch Screen,WIFI 2.4, รองรับ 3-Way Video Conference, 16 VOIP Account รองรับ POE
|
|
Audio Features
|
• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Yealink Noise Proof Technology
• Audio codec: Opus, G.722, G.722.1, G.722.1C, G.711 (A/μ), G.723, G.726, G.729AB, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC
Video Features
• 720p@30fps HD video call
• Video codec: H.264 High Profile, H.264, VP8
• Video quality: 720P (1280×720)-30fps ( ≥ 512 kbps)
• Yealink CAM50 camera: 2 mega-pixel, plug and play, adjustable, with privacy shutter and LED indicator
• Vertical tilt angle adjustable: 50°
• Field of view (FOV): 70.2°
• Self view (local video preview)
|
|
Display and Indicator
|
• LCD screen:
– 7″ 1024 x 600 capacitive adjustable touch screen
– Vertical tilt angle adjustable: 48°
• 5 points multi-touch surface
• Screensaver and Wallpaper
• LED for call and message waiting indication
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name, number and photo
|
|
Android bundled Applications
|
• FileManager/Email/Calendar/Camera/Gallery/Recorder/ Calculator/Browser/Message
• Third party Android application support
|
|
Phone Features
|
• Yealink’s SDK (Software Development Kit)
• 16 VoIP accounts
• Call hold, call forward, call waiting, call transfer
• One-touch speed dial, hotline, mute, DND
• Group listening, emergency call
• Redial, call return, auto answer
• Direct IP call without SIP proxy
• Ring tone select/import/delete
• Set date time manually or automatically
• Dial plan, action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Three-party video conferencing
• Five-party audio/video mixed conferencing
• Data import/export via Bluetooth, email, etc.
• DoorPhone features:
Preview, One-button Open, Monitoring
|
|
Corded-Cordless Phone (via DECT Dongle DD10K)
|
• Up to 4 DECT cordless handsets
• Up to 4 concurrent calls
• Support Yealink W52H/W53H (OTA pending)/W56H/DD Phone
• Slave Handset for Master Deskset
|
|
IP-PBX Features
|
• Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
• Anonymous call, anonymous call rejection
• Remote office, hot desking, intercom, paging, call completio
• Message Waiting Indicator (MWI)
• Voice mail, call park, call pickup, music on hold, call recording
|
|
Directory
|
• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded
|
|
Feature keys
|
• 27 one-touch DSS keys
• 8 feature keys: hold, transfer, message, headset, mute, redial, speakerphone, volume
• Illuminated mute/headset/hands-free speakerphone key
|
|
Interface
|
• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 3
• Built-in Wi-Fi (2.4GHz, 802.11b/g/n)
• Built-in Bluetooth 4.0+ EDR for
– Bluetooth headsets
– Pairing mobile devices
• 1 x USB 2.0 port (on the top of the phone) for:
– Yealink CAM50 camera
• 1 x USB 2.0 port (on the rear of the phone) for:
– USB flash drive
– Wired/wireless USB headset
– Color-screen expansion modules
• 1 x Security lock port
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
• Supports up to 3 color-screen expansion modules
|
|
Management
|
• Configuration: browser/phone/auto provision
• Auto provision via FTP/TFTP/HTTP/HTTPS
• Auto provision with PnP, Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot, package tracing export, system log
• T56A&T58A&T58V unified firmware and common.cfg file
• Only the administrator can install/uninstall apps via autop
• Setup Assistant wizard
|
|
Network and Security
|
• IPv4/IPv6
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Adb encryption authenticated
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X
|
|
Other Physical Features
|
• Color: Metallic Grey
• Wall mountable (optional)
• External Yealink AC adapter (optional):
AC 100~240V input and DC 5V/2A output
• Power consumption (PSU): 1.9W-5.7W
• Power consumption (PoE): 2.6W-7.4W
• Dimension (W*D*H*T):
259.4mm*220mm*239mm*42.6mm
• Operating humidity: 10~95%
• Operating temperature: -10~40°C (+14~104°F)
|
|
Package Features
|
• Package content:
– Yealink SIP-T58V IP phone
– Handset with handset cord
– Ethernet Cable (2m CAT5E FTP Cable)
– Stand
– Yealink CAM50 camera
– Quick Start Guide
– Power Adapter (Optional)
• Qty/CTN: 5 PCS
• N.W/CTN: 9.45 kg
• G.W/CTN: 10.55 kg
• Giftbox size: 324 mm*293 mm*128 mm
• Carton Meas: 680 mm*303 mm*332 mm
|
