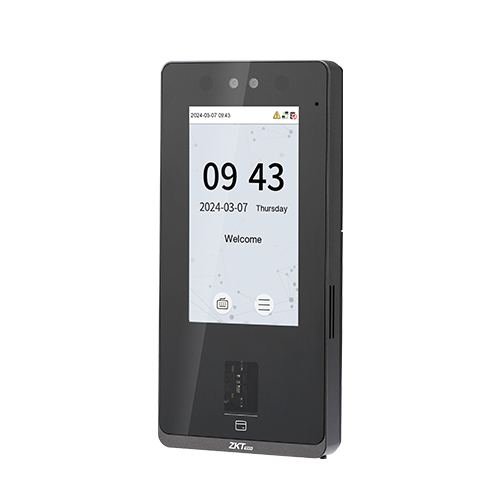

TAG-SenseFace 4 Series
SPECIFICATION
Parameters
- Model
SenseFace 4A
SenseFace 4B
- Display
4.3″@ TFT Color Touch LED Screen (272*480)
- Camera
WDR Binocular Camera @ 1MP
- Operation System
Linux
- Hardware
CPU: Dual Core@1GHz
RAM: 512MB; ROM: 8GB
Speaker: 8ohm @1W
Microphone: *1 (Sensitivity: -42 dB/ Omni-directional/ Signal-to-Noise Ratio: 58 dB/
Impedance: 2.2kΩ)
Supplement Light: No
Fingerprint Sensor: In-Glass Fingerprint (Z-ID) (SenseFace 4A)
- Authentication Method
SenseFace 4A: Fingerprint / Face / Card / Password (Virtual Keypad)
SenseFace 4B: Face / Card / Password (Virtual Keypad)
- Fingerprint Template Capacity
SenseFace 4A: 8,000 (1:N) (Standard)
SenseFace 4B: /
- Face Template Capacity
6,000 (1:N) (Standard)
- Card Capacity
8,000 (1:N) (Standard)
- User Capacity
8,000 (1:N) (Standard)
- Transaction Capacity
200,000 (1:N)
- Max. User Password Length
8 Digits
- Biometric Verification Speed
SenseFace 4A: less than 0.5 sec (Fingerprint) ; less than 0.35 sec (Facial Authentication)
SenseFace 4B: less than 0.35 sec (Facial Authentication)
- Touchless Biometric Recognition Distance
30cm to 200cm (Facial Authentication)
- False Acceptance Rate (FAR) %
SenseFace 4A: FAR ≤ 0.01% ( Visible Light Facial Authentication); FAR ≤ 0.0001% ( Fingerprint )
SenseFace 4B: FAR ≤ 0.01% ( Visible Light Facial Authentication)
- False Rejection Rate (FRR) %
SenseFace 4A: FRR ≤ 0.02% ( Visible Light Facial Authentication); FRR ≤ 0.01% ( Fingerprint )
SenseFace 4B: FRR ≤ 0.02% ( Visible Light Facial Authentication)
- Biometric Algorithm
SenseFace 4A: ZKFace V4.0 ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
SenseFace 4B: ZKFace V4.0
- Card Type
ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)
- Communication
TCP / IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
Wiegand (Input or Output)*1
RS485: ZKTeco RS485*1
USB: Type A (USB Drive Only)*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1
- Standard Functions
ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
- Standard Functions
IC Card, Wi-Fi, Wireless Doorbell
- Access Control Interface
RS485 ( RS485 Card Reader / Biometric Reader)
- Power Supply
DC 12V 3A
- Operating Temperature
-5°C to 45°C
- Operating Humidity
10% to 90% RH (Non-condensing)
- Dimensions
175.00 mm * 84.50 mm * 21.65 mm (L*W*H)
- Net Weight
0.264 Kg
- Supported Software
Software: ZKBio CVAccess/ZKBioTime
Mobile App: ZKBio Zlink
Cloud Service: ZKBio Zlink
- Installation
Wall-mount (Compatible with Asia Gang Box / Single Gang Box)
- Ingress Protection Rating
IP65 (waterproof and dustproof)
- Certifications
ISO14001, ISO9001, CE, FCC, RoHS
