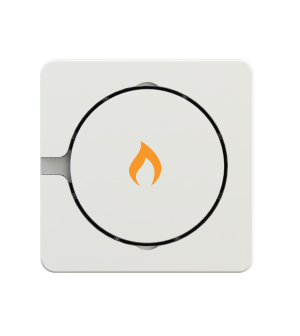

SunSpot™
Product Overview
IgniteNet™’s SunSpot™ is the most cost-effective, cloud-managed 802.11ac access point on the market. The SunSpot™ contains 2 independent, concurrent operation radios – one 802.11ac (5GHz) radio and one 802.11n (2.4GHz) radio – capable of delivering blisteringly fast wireless speeds. The sleek design of the SunSpot™ AC allows it to be placed inconspicuously in both offices and homes, bringing fast wireless connections to hard-to-reach locations.
Key Features and Benefits
Cloud-‐Enabled Networking
The IgniteNet™ SunSpot™ AC is cloud-‐enabled out of the box allowing for easy, highly scalable installation, configuration, and management.
Dual Band AC1200 Operation
The SunSpot™ AC is capable of operating simultaneously at 2.4GHz (802.11b/g/n) as well as 5GHz (802.11a/n/ac) to supply ample throughput for the most demanding applications.
Powerful, Flexible Configuration
The SunSpot™ AC can operate either as a stand-‐ alone access point or as a coordinated, cloud-‐ managed access point, easily meeting the requirements of any installation.
Robust Yet Simple Mounting Options
The SunSpot™ AC can be wall, ceiling, or desktop mounted, greatly simplifying installations in both offices and homes.
Features
HARDWARE FEATURES
✓ 1x Gigabit Ethernet Port (PoE IN) ✓ 2x 10/100 Fast Ethernet Ports
✓ 1x USB 2.0 Port
✓ Dual flash image support
LEDs
✓ Power, Ethernet, Wireless, Health/Status, Controller Status
DIMENSIONS (L x W x H )
✓ 200 x 200 x 50 mm
WEIGHT
✓ TBD g
POWER
✓ 12V/1A DC
✓ 802.3at Power over Ethernet
OPERATING ENVIRONMENT
✓ Operating Temperature: 0Cº to +50Cº
✓ Store Temperature: -‐40Cº to 70Cº
✓ Operating Humidity: 10 to 90% non-‐condensing (RH)
REGULATORY / STANDARDS COMPLIANCE
✓ FCC/IC
✓ CE
RF PERFORMANCE (LIMIT)
✓ 2.4GHz:
20dBm
✓ 5GHz:
23dBm (5.15-‐5.35GHz)
30dBm (5.47-‐5.85GHz)
KEY FEATURES
✓ Supports Service Provider and Enterprise type networks
✓ Stand-‐alone or Cloud-‐controlled operating modes
✓ AP/Client/Client WDS modes with Flexible Bridging and Routing
✓ 802.11a/b/g/n/ac, 2×2, Dual Band Dual Concurrent ( 2.4GHz and 5GHz)
✓ Supports up to 8 SSIDs per radio
✓ Optional single band available
✓ IEEE802.e Wi-‐Fi Multimedia ( WMM-‐QoS)
✓ WEP (64/128-‐bit), WPA,WPA2-‐PSK,WPA2-‐AES, PSK and Enterprise
✓ Admission control by client MAC address
APPLICATIONS
✓ Enterprise AP
✓ 3G/4G Offload
✓ Managed WiFi Services
